Battery Management System
Our BMS is designed for the needs of Indonesian consumers, with the advantage of being a domestic product that's easily customizable for a variety of battery applications. Supported by the Elbi Smart Monitoring app, users can monitor and control battery performance in real time with greater convenience.
Start from Rp500.000

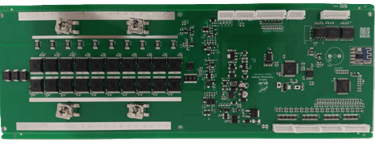

BMS LOW VOLTAGE
Specification
Battery Series : 16 Series
Continuous Current : 51.2 V
Max. Current Discharge : 100 A
Max. Current Charge : 50 A
Communication Support : CAN, RS-485, Bluetooth, Cellular, & Wifi.
Compatibility : Battery Energy Storage System (BESS)

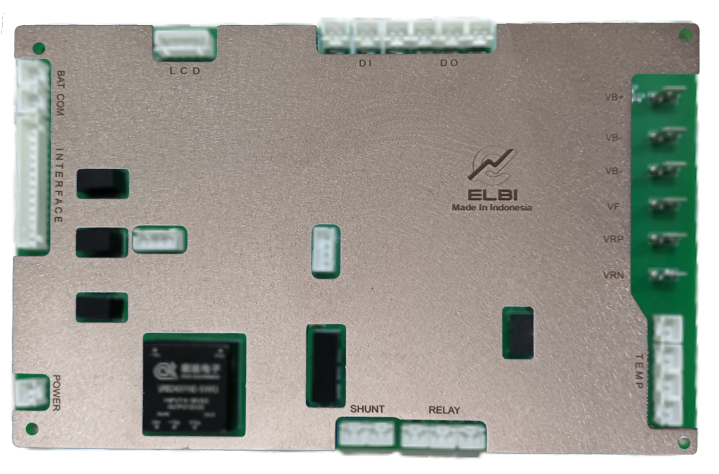

BMS MASTER
Battery Modules: 10 Modules
Nominal Current: 100 A
Peak Current: 200 A
Voltage Operation: 440 - 600 V
Nominal Module Voltage: 57.6 V
Temperature Operation: -40 to 150 degC
Communication: CAN, RS485, Bluetooth, WiFi, Cellular

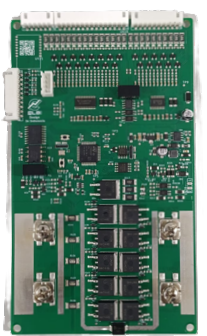

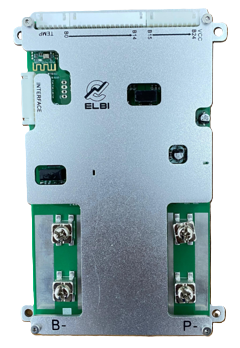

BMS ELECTRIC VEHICLE
Battery Series : 24S.
Continuous Current : 100A.
Peak Current : 200A.
Communication Support : CAN, RS-485, Bluetooth, Cellular, & Wifi.
Compibility : Electric Vehicles
Specification
Specification

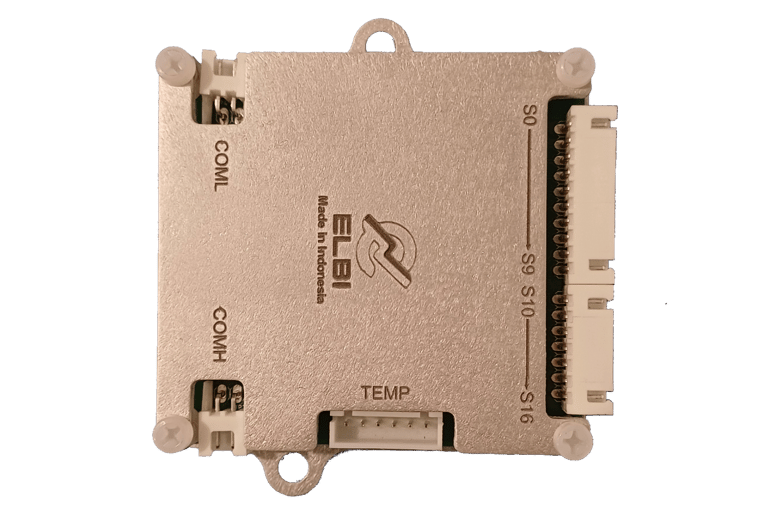

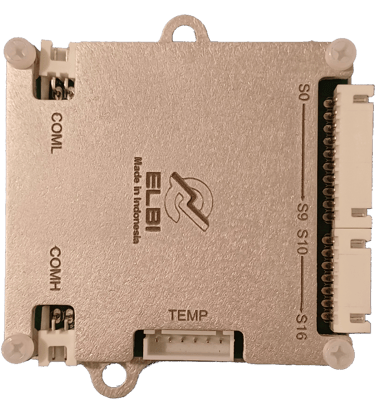

BMS SLAVE
Specification
Battery Series: 6 - 16 series
Balancing: Passive Balancing
Balancing Current: 240 mA
Voltage Operation: 11 - 80 V
Max. Cell Voltage: 5 V
Temperature Operation: -40 to 150 degC
Communication: Daisy Chain
