BMS LOW VOLTAGE

Spesifikasi

• Battery Series : 16 Series

• Continuous Current : 51.2 V

• Max. Current Discharge : 100 A

• Max. Current Charge : 50 A

• Communication Support : CAN, RS-485, Bluetooth, Cellular, & Wifi.

• Compatibility : Battery Energy Storage System (BESS)

BMS MASTER

• Battery Modules: 10 Modules

• Nominal Current: 100 A

• Peak Current: 200 A

• Voltage Operation: 440 - 600 V

• Nominal Module Voltage: 57.6 V

• Temperature Operation: -40 to 150 degC

• Communication: CAN, RS485, Bluetooth, WiFi, Cellular

BMS KENDARAAN LISTRIK

• Battery Series : 24S.

• Continuous Current : 100A.

• Peak Current : 200A.

• Communication Support : CAN, RS-485, Bluetooth, Cellular, & Wifi.

• Compibility : Electric Vehicles

Spesifikasi

Spesifikasi

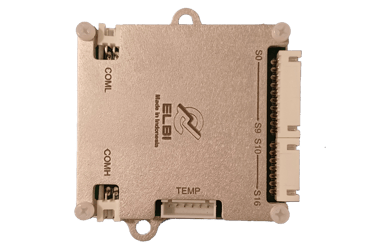

BMS SLAVE

Spesifikasi

• Battery Series: 6 - 16 series

• Balancing: Passive Balancing

• Balancing Current: 240 mA

• Voltage Operation: 11 - 80 V

• Max. Cell Voltage: 5 V

• Temperature Operation: -40 to 150 degC

• Communication: Daisy Chain
